tape on paper faced metal (platinum paper-faced metal drywall beads and trims)

www. xiujun. com    wxj555 @ aliyun.com

It is made with a unique,high quality paper laminated to various metal forms. The metal provides maximum strength and protection for the corner, while the paper provides reinforcement to prevent cracking caused by the movement or shrinkage of framing members. The result is a clean, precise corner that is long lasting, provides superior resistance to edge cracking,rust resistance and is not subject to fastener popping.

It creates a smooth rounded corner giving a sense of openness and contemporary style to any room.It is suitable for both 1/2 & 5/8 inch wallboard and are quickly and easily installed using joint compound, leaving a crack resistant corner that is not subject to fastener popping. Available in outside/inside 90 and outside corners,L Trim and J Trim, 90°and 135°round outside corner.

Standard lengths:2.44m,2.74m,3.05m

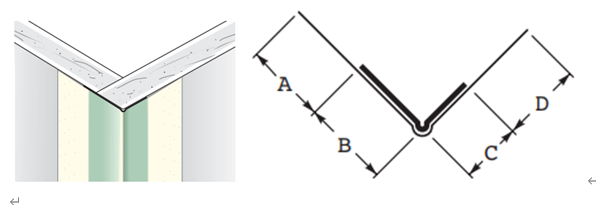

Paper faced metal-81012A(90° outside corner)

90° and offset outside corner ,tape-on bead, A=12mm, B=21mm, C=28mm, D=12mm

Used for 90°outside corner. Suitable for use on any thickness of wallboard.

Designed with a wider 1”by 1” profile that’s easier to install on all cut edges. Reduced bead height results in less use of joint compound. In most cases,reduces the amount of compound needed by one coat.

XIUJUN® BRAND

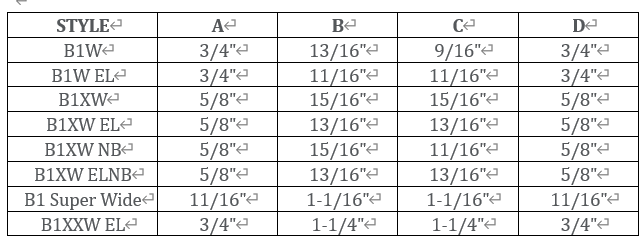

PAPER-FACED METAL CORNER

BEAD OUTSIDE CORNER,

TAPE-ON (B1W, B1XW, B1XXW,

B1 SUPER WIDE)

Use for 90° outside corners. Suitable for use on any thickness of wallboard.

Standard lengths: 8', 9', 10'. Meets ASTM C1047.



DIMENSIONS



Note: XW = Extra Wide; XXW = Extra Extra Wide; EL = Even Leg; NB = No Bead.

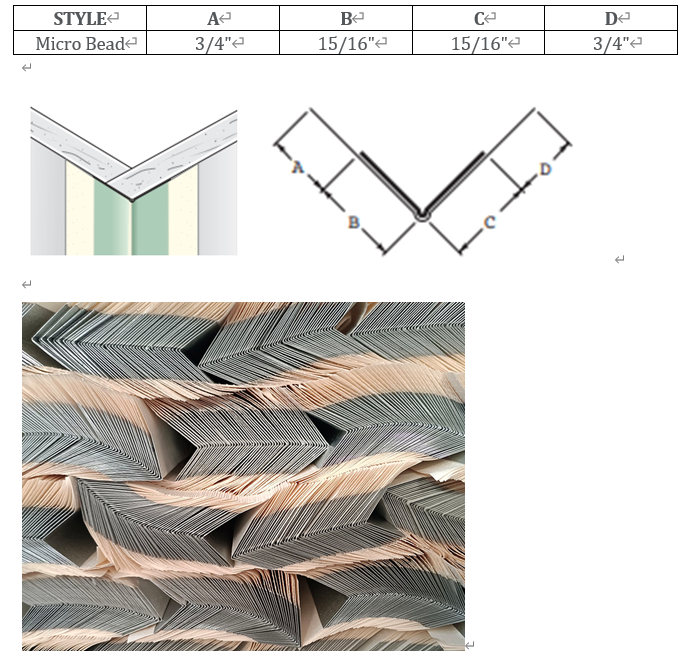

PAPER-FACED METAL CORNER

BEAD OUTSIDE CORNER,

TAPE-ON (MICRO BEAD)

Designed with a wider 1" by 1" profile that’s easier to install on all cut edges. Reduced bead height results in

less use of joint compound. In most cases, reduces the amount of compound needed by one coat. Standard

lengths: 8', 10', 12'. Meets ASTM C1047.

DIMENSIONS

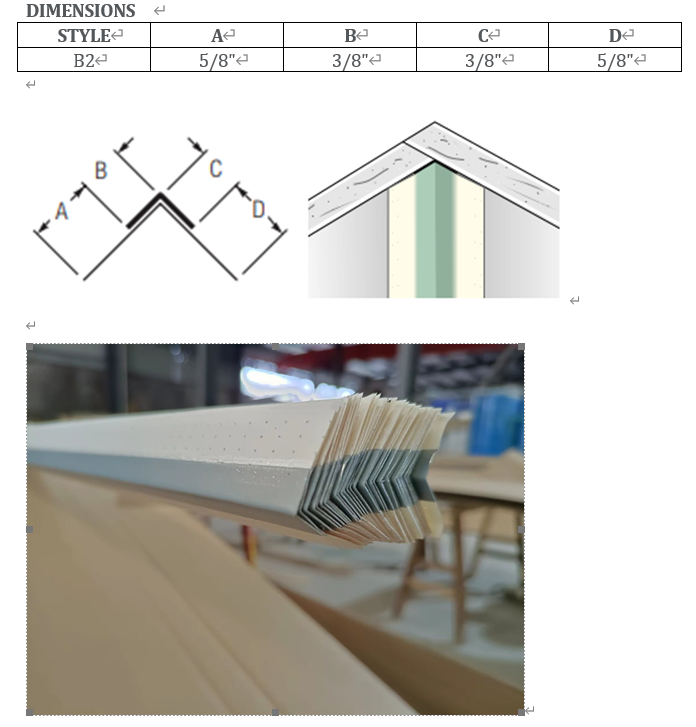

Paper faced metal-81012I(90° AND OFFSET INSIDE CORNER)

XIUJUN® BRAND

PAPER-FACED METAL CORNER TRIM INSIDE CORNER, TAPE-ON (B2)

Designed to form a true inside (90°) corner. For use with any thickness of wallboard. Standard lengths: 8', 9', 10'. Meets ASTM C1047.



DIMENSIONS







Paper faced metal-81012L(L Trims)

Use where wallboard abuts with suspended ceilings, beams, plaster, masonry and concrete walls, as well as untrimmed door and window jambs. Standard lengths: 8', 9', 10'. Meets ASTM C1047, with the exception of B4 (1/2") and B4 NB (1/2").



XIUJUN® BRAND

PAPER-FACED METAL TRIM “L” SHAPED, TAPE-ON

(B4 SERIES)



DIMENSIONS





Note: NB = No Bead

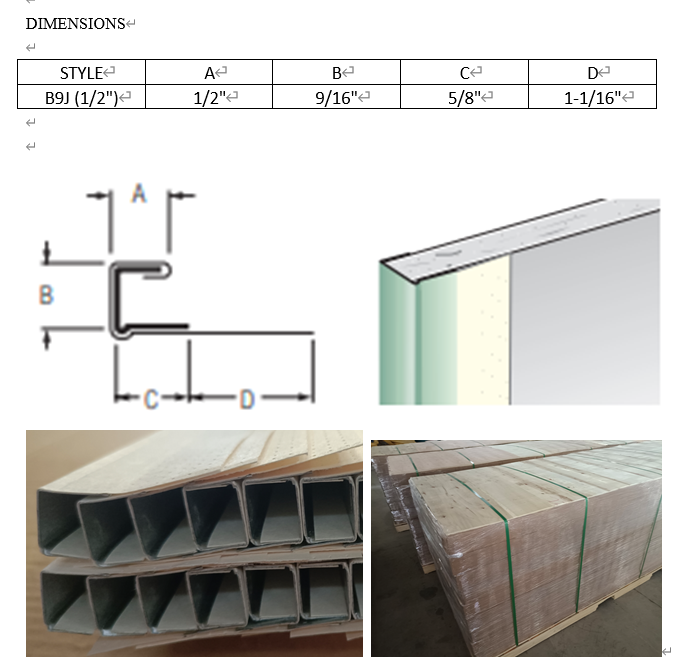

Paper faced metal-81012J(J Trims)

Tape-on “J”-shaped trim completely surrounds the rough edge of the wallboard, providing a strong and clean corner. Tape-on application eliminates frustration with nailing and nail shrink back. Can be used for finishing off bifold closet doors, as well as under all door and window encasements, and to finish rough drywall ends. Standard lengths: 7', 8', 9',10', 50 or 100pcs/ctn. 54ctns/pallet.

XIUJUN® BRAND

PAPER-FACED METAL TRIM “J” SHAPED, TAPE-ON (B9)



DIMENSIONS











Paper faced metal-81012N(90°round outside corner) (TXJ-90)

Paper faced metal-81012N2(135° round outside corner) (TXJ-135)

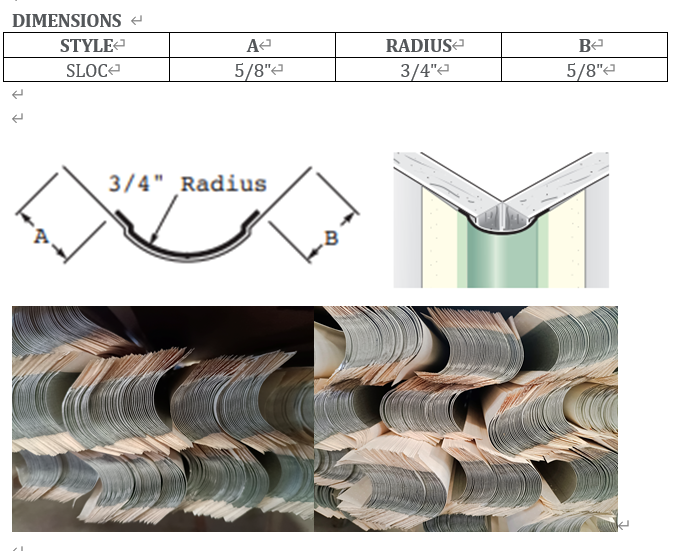

SOFTLINE BULLNOSE AND OFFSET OUTSIDE CORNER BEAD - 90°



XIUJUN® BRAND



PAPER-FACED METAL CORNER BEAD 3/4" BULLNOSE OUTSIDE

CORNER, TAPE-ON (SLOC)



Designed for 90° offset angles. Speeds application and eliminates need on framing members for fastening corners. Standard lengths: 8', 9', 10'. Meets ASTM C1047.



DIMENSIONS
